ciros R-AIG

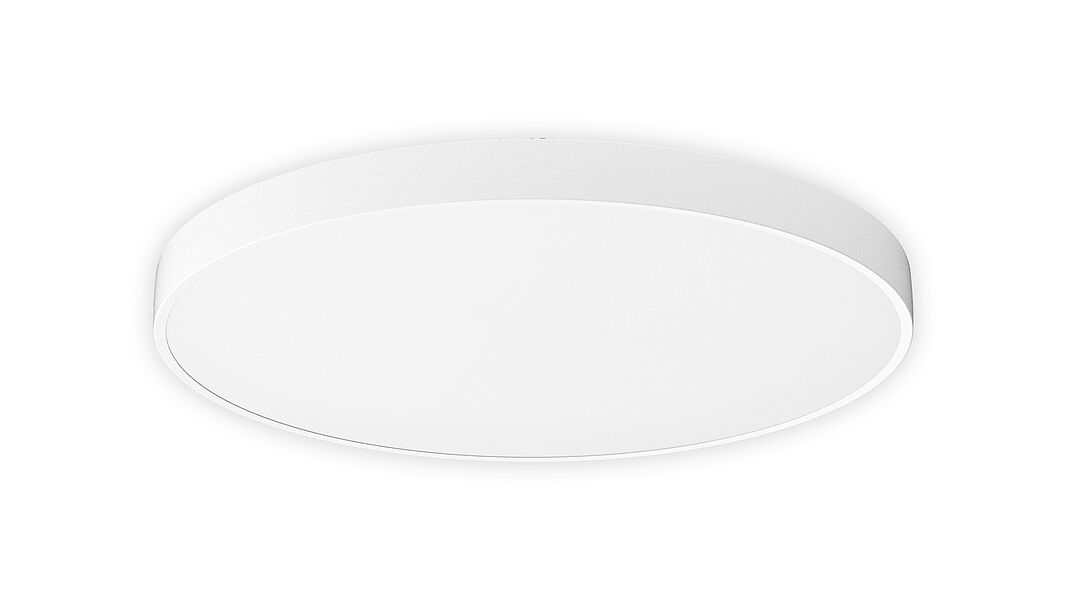

Housing
Round aluminium profile, texture painted. Suitable for ceiling and wall mounting.
Lighting technology
Direct/indirect distribution. Homogenous illumination by satinised special acrylic pane with high transmission. Indirect ratio for a smooth ceiling/wall illumination.
Rated life time = L80 B10 50.000h. Light colour: 4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm². Easy mounting due to bayonet lock and plug & play connection.
Filter
0
Articles
Size (mm)
365 x 69
600 x 69
880 x 69
1160 x 69
Housing colour
traffic white RAL 9016
black RAL 9005
white aluminium RAL 9006
Dimmable
no
yes
no/sensor
Lightcolour
830
840
930
940
| Type | Colour | Luminous flux (lm) | Dimensions (mm) (DxH) | Item number | Downloads | |
|---|---|---|---|---|---|---|
| ciros R400-AIG LED 2800 840 flex10HF vw | tw RAL 9016 | 2776 | 365 x 69 | 4674148180 | 697.00 € | Download |
| ciros R400-AIG LED 2800 840 flex10HF sw | bk RAL 9005 | 2776 | 365 x 69 | 4674148184 | 697.00 € | Download |
| ciros R400-AIG LED 2800 840 flex10HF wa | wa RAL 9006 | 2776 | 365 x 69 | 4674148186 | 697.00 € | Download |
| ciros-R-AIG/400 | ||||||
| ciros R400-AIG LED 2600 830 ET vw | tw RAL 9016 | 2649 | 365 x 69 | 4674134180 | 497.00 € | Download |
| ciros R400-AIG LED 2600 830 ET sw | bk RAL 9005 | 2649 | 365 x 69 | 4674134184 | 497.00 € | Download |
| ciros R400-AIG LED 2600 830 ET wa | wa RAL 9006 | 2649 | 365 x 69 | 4674134186 | 497.00 € | Download |
| ciros R400-AIG LED 2600 830 DALI vw | tw RAL 9016 | 2649 | 365 x 69 | 4674136680 | 524.00 € | Download |
| ciros R400-AIG LED 2600 830 DALI sw | bk RAL 9005 | 2649 | 365 x 69 | 4674136684 | 524.00 € | Download |
| ciros R400-AIG LED 2600 830 DALI wa | wa RAL 9006 | 2649 | 365 x 69 | 4674136686 | 524.00 € | Download |
| ciros R400-AIG LED 2800 840 ET vw | tw RAL 9016 | 2776 | 365 x 69 | 4674144180 | 497.00 € | Download |
| ciros R400-AIG LED 2800 840 ET sw | bk RAL 9005 | 2776 | 365 x 69 | 4674144184 | 497.00 € | Download |
| ciros R400-AIG LED 2800 840 ET wa | wa RAL 9006 | 2776 | 365 x 69 | 4674144186 | 497.00 € | Download |
| ciros R400-AIG LED 2800 840 DALI vw | tw RAL 9016 | 2776 | 365 x 69 | 4674146680 | 524.00 € | Download |
| ciros R400-AIG LED 2800 840 DALI sw | bk RAL 9005 | 2776 | 365 x 69 | 4674146684 | 524.00 € | Download |
| ciros R400-AIG LED 2800 840 DALI wa | wa RAL 9006 | 2776 | 365 x 69 | 4674146686 | 524.00 € | Download |
| ciros-R-AIG/600 | ||||||
| ciros R600-AIG LED 6100 830 ET vw | tw RAL 9016 | 6122 | 600 x 69 | 4676134180 | 789.00 € | Download |
| ciros R600-AIG LED 6100 830 ET sw | bk RAL 9005 | 6122 | 600 x 69 | 4676134184 | 789.00 € | Download |
| ciros R600-AIG LED 6100 830 ET wa | wa RAL 9006 | 6122 | 600 x 69 | 4676134186 | 789.00 € | Download |
| ciros R600-AIG LED 6100 830 DALI vw | tw RAL 9016 | 6122 | 600 x 69 | 4676136680 | 812.00 € | Download |
| ciros R600-AIG LED 6100 830 DALI sw | bk RAL 9005 | 6122 | 600 x 69 | 4676136684 | 812.00 € | Download |
| ciros R600-AIG LED 6100 830 DALI wa | wa RAL 9006 | 6122 | 600 x 69 | 4676136686 | 812.00 € | Download |
| ciros R600-AIG LED 6400 840 ET vw | tw RAL 9016 | 6449 | 600 x 69 | 4676144180 | 789.00 € | Download |
| ciros R600-AIG LED 6400 840 ET sw | bk RAL 9005 | 6449 | 600 x 69 | 4676144184 | 789.00 € | Download |
| ciros R600-AIG LED 6400 840 ET wa | wa RAL 9006 | 6449 | 600 x 69 | 4676144186 | 789.00 € | Download |
| ciros R600-AIG LED 6400 840 DALI vw | tw RAL 9016 | 6449 | 600 x 69 | 4676146680 | 812.00 € | Download |
| ciros R600-AIG LED 6400 840 DALI sw | bk RAL 9005 | 6449 | 600 x 69 | 4676146684 | 812.00 € | Download |
| ciros R600-AIG LED 6400 840 DALI wa | wa RAL 9006 | 6449 | 600 x 69 | 4676146686 | 812.00 € | Download |
| ciros R600-AIG LED 6400 930 ET vw | tw RAL 9016 | 6396 | 600 x 69 | 4676154180 | 862.00 € | Download |
| ciros R600-AIG LED 6400 930 ET sw | bk RAL 9005 | 6396 | 600 x 69 | 4676154184 | 862.00 € | Download |
| ciros R600-AIG LED 6400 930 ET wa | wa RAL 9006 | 6396 | 600 x 69 | 4676154186 | 862.00 € | Download |
| ciros R600-AIG LED 6400 930 DALI vw | tw RAL 9016 | 6396 | 600 x 69 | 4676156680 | 862.00 € | Download |
| ciros R600-AIG LED 6400 930 DALI sw | bk RAL 9005 | 6396 | 600 x 69 | 4676156684 | 862.00 € | Download |
| ciros R600-AIG LED 6400 930 DALI wa | wa RAL 9006 | 6396 | 600 x 69 | 4676156686 | 862.00 € | Download |
| ciros R600-AIG LED 6700 940 ET vw | tw RAL 9016 | 6679 | 600 x 69 | 4676174180 | 862.00 € | Download |
| ciros R600-AIG LED 6700 940 ET sw | bk RAL 9005 | 6679 | 600 x 69 | 4676174184 | 862.00 € | Download |
| ciros R600-AIG LED 6700 940 ET wa | wa RAL 9006 | 6679 | 600 x 69 | 4676174186 | 862.00 € | Download |
| ciros R600-AIG LED 6700 940 DALI vw | tw RAL 9016 | 6679 | 600 x 69 | 4676176680 | 862.00 € | Download |
| ciros R600-AIG LED 6700 940 DALI sw | bk RAL 9005 | 6679 | 600 x 69 | 4676176684 | 862.00 € | Download |
| ciros R600-AIG LED 6700 940 DALI wa | wa RAL 9006 | 6679 | 600 x 69 | 4676176686 | 862.00 € | Download |
| ciros-R-AIG/900 | ||||||
| ciros R900-AIG LED 13700 830 ET vw | tw RAL 9016 | 13671 | 880 x 69 | 4679134180 | 1263.00 € | Download |
| ciros R900-AIG LED 13700 830 ET sw | bk RAL 9005 | 13671 | 880 x 69 | 4679134184 | 1263.00 € | Download |
| ciros R900-AIG LED 13700 830 ET wa | wa RAL 9006 | 13671 | 880 x 69 | 4679134186 | 1263.00 € | Download |
| ciros R900-AIG LED 13700 830 DALI vw | tw RAL 9016 | 13671 | 880 x 69 | 4679136680 | 1278.00 € | Download |
| ciros R900-AIG LED 13700 830 DALI sw | bk RAL 9005 | 13671 | 880 x 69 | 4679136684 | 1278.00 € | Download |
| ciros R900-AIG LED 13700 830 DALI wa | wa RAL 9006 | 13671 | 880 x 69 | 4679136686 | 1278.00 € | Download |
| ciros R900-AIG LED 14400 840 ET vw | tw RAL 9016 | 14431 | 880 x 69 | 4679144180 | 1263.00 € | Download |
| ciros R900-AIG LED 14400 840 ET sw | bk RAL 9005 | 14431 | 880 x 69 | 4679144184 | 1263.00 € | Download |
| ciros R900-AIG LED 14400 840 ET wa | wa RAL 9006 | 14431 | 880 x 69 | 4679144186 | 1263.00 € | Download |
| ciros R900-AIG LED 14400 840 DALI vw | tw RAL 9016 | 14431 | 880 x 69 | 4679146680 | 1278.00 € | Download |
| ciros R900-AIG LED 14400 840 DALI sw | bk RAL 9005 | 14431 | 880 x 69 | 4679146684 | 1278.00 € | Download |
| ciros R900-AIG LED 14400 840 DALI wa | wa RAL 9006 | 14431 | 880 x 69 | 4679146686 | 1278.00 € | Download |
| ciros R900-AIG LED 14200 930 ET vw | tw RAL 9016 | 14234 | 880 x 69 | 4679154180 | 1377.00 € | Download |
| ciros R900-AIG LED 14200 930 ET sw | bk RAL 9005 | 14234 | 880 x 69 | 4679154184 | 1377.00 € | Download |
| ciros R900-AIG LED 14200 930 ET wa | wa RAL 9006 | 14234 | 880 x 69 | 4679154186 | 1377.00 € | Download |
| ciros R900-AIG LED 14200 930 DALI vw | tw RAL 9016 | 14234 | 880 x 69 | 4679156680 | 1405.00 € | Download |
| ciros R900-AIG LED 14200 930 DALI sw | bk RAL 9005 | 14234 | 880 x 69 | 4679156684 | 1405.00 € | Download |
| ciros R900-AIG LED 14200 930 DALI wa | wa RAL 9006 | 14234 | 880 x 69 | 4679156686 | 1405.00 € | Download |
| ciros R900-AIG LED 14900 940 ET vw | tw RAL 9016 | 14865 | 880 x 69 | 4679174180 | 1377.00 € | Download |
| ciros R900-AIG LED 14900 940 ET sw | bk RAL 9005 | 14865 | 880 x 69 | 4679174184 | 1377.00 € | Download |
| ciros R900-AIG LED 14900 940 ET wa | wa RAL 9006 | 14865 | 880 x 69 | 4679174186 | 1377.00 € | Download |
| ciros R900-AIG LED 14900 940 DALI vw | tw RAL 9016 | 14865 | 880 x 69 | 4679176680 | 1405.00 € | Download |
| ciros R900-AIG LED 14900 940 DALI sw | bk RAL 9005 | 14865 | 880 x 69 | 4679176684 | 1405.00 € | Download |
| ciros R900-AIG LED 14900 940 DALI wa | wa RAL 9006 | 14865 | 880 x 69 | 4679176686 | 1405.00 € | Download |
| ciros-R-AIG/1200 | ||||||
| ciros R1200-AIG LED 25000 830 ET vw | tw RAL 9016 | 24950 | 1160 x 69 | 4671134180 | 2073.00 € | Download |
| ciros R1200-AIG LED 25000 830 ET sw | bk RAL 9005 | 24950 | 1160 x 69 | 4671134184 | 2073.00 € | Download |
| ciros R1200-AIG LED 25000 830 ET wa | wa RAL 9006 | 24950 | 1160 x 69 | 4671134186 | 2073.00 € | Download |
| ciros R1200-AIG LED 25000 830 DALI vw | tw RAL 9016 | 24950 | 1160 x 69 | 4671136680 | 2100.00 € | Download |
| ciros R1200-AIG LED 25000 830 DALI sw | bk RAL 9005 | 24950 | 1160 x 69 | 4671136684 | 2100.00 € | Download |
| ciros R1200-AIG LED 25000 830 DALI wa | wa RAL 9006 | 24950 | 1160 x 69 | 4671136686 | 2100.00 € | Download |
| ciros R1200-AIG LED 26300 840 ET vw | tw RAL 9016 | 26326 | 1160 x 69 | 4671144180 | 2073.00 € | Download |
| ciros R1200-AIG LED 26300 840 ET sw | bk RAL 9005 | 26326 | 1160 x 69 | 4671144184 | 2073.00 € | Download |
| ciros R1200-AIG LED 26300 840 ET wa | wa RAL 9006 | 26326 | 1160 x 69 | 4671144186 | 2073.00 € | Download |
| ciros R1200-AIG LED 26300 840 DALI vw | tw RAL 9016 | 26326 | 1160 x 69 | 4671146680 | 2100.00 € | Download |
| ciros R1200-AIG LED 26300 840 DALI sw | bk RAL 9005 | 26326 | 1160 x 69 | 4671146684 | 2100.00 € | Download |
| ciros R1200-AIG LED 26300 840 DALI wa | wa RAL 9006 | 26326 | 1160 x 69 | 4671146686 | 2100.00 € | Download |
| ciros R1200-AIG LED 26000 930 ET vw | tw RAL 9016 | 26039 | 1160 x 69 | 4671154180 | 2173.00 € | Download |
| ciros R1200-AIG LED 26000 930 ET sw | bk RAL 9005 | 26039 | 1160 x 69 | 4671154184 | 2173.00 € | Download |
| ciros R1200-AIG LED 26000 930 ET wa | wa RAL 9006 | 26039 | 1160 x 69 | 4671154186 | 2173.00 € | Download |
| ciros R1200-AIG LED 26000 930 DALI vw | tw RAL 9016 | 26039 | 1160 x 69 | 4671156680 | 2225.00 € | Download |
| ciros R1200-AIG LED 26000 930 DALI sw | bk RAL 9005 | 26039 | 1160 x 69 | 4671156684 | 2225.00 € | Download |
| ciros R1200-AIG LED 26000 930 DALI wa | wa RAL 9006 | 26039 | 1160 x 69 | 4671156686 | 2225.00 € | Download |
| ciros R1200-AIG LED 27200 940 ET vw | tw RAL 9016 | 27194 | 1160 x 69 | 4671174180 | 2173.00 € | Download |
| ciros R1200-AIG LED 27200 940 ET sw | bk RAL 9005 | 27194 | 1160 x 69 | 4671174184 | 2173.00 € | Download |
| ciros R1200-AIG LED 27200 940 ET wa | wa RAL 9006 | 27194 | 1160 x 69 | 4671174186 | 2173.00 € | Download |
| ciros R1200-AIG LED 27200 940 DALI vw | tw RAL 9016 | 27194 | 1160 x 69 | 4671176680 | 2225.00 € | Download |
| ciros R1200-AIG LED 27200 940 DALI sw | bk RAL 9005 | 27194 | 1160 x 69 | 4671176684 | 2225.00 € | Download |
| ciros R1200-AIG LED 27200 940 DALI wa | wa RAL 9006 | 27194 | 1160 x 69 | 4671176686 | 2225.00 € | Download |
