Housing
Extruded aluminium profile, natural anodised with white reflectors. Also available in traffic white (similar to RAL 9016) or deep black (similar to RAL 9005). Other housing colours on request.
Lighting technology
Translucent polycarbonate extruded profile, flush with ceiling, with inserted microprismatic diffusor; self-engaging. Rated life time: L80 B10 50.000h. Light colour: 4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm². Through wiring plug-in system 10A.
Suspension
For face-end set fino-HTE A/E as well as for corner profile fino-HTL LB one suspension-kit is included in delivery. For each additional joint, the wire suspension incl. connector fino-SAY must be ordered separately.
Accessories
Face-end set fino-HTE A/E, wire suspension fino-SAY and three- or five-pole connection cable fino-AL must be ordered separately.
Items
| Type | Housing colour | Luminous flux | Dimensions (mm) | Article No. |
|---|---|---|---|---|
| fino-HT+MP/0800 | ||||
fino-HT+MP/0800 LED 1300 840 DALI ana | ana | 1264 lm | 848 x 72 x 92 | 5353046605+1350800150 |
fino-HT+MP/0800 LED 1300 840 ET ana | ana | 1264 lm | 848 x 72 x 92 | 5353044105+1350800150 |
fino-HT+MP/0800 LED 2300 840 DALI ana | ana | 2284 lm | 848 x 72 x 92 | 5353146605+1350800150 |
fino-HT+MP/0800 LED 2300 840 ET ana | ana | 2284 lm | 848 x 72 x 92 | 5353144105+1350800150 |
| fino-HT+MP/1100 | ||||
fino-HT+MP/1100 LED 1700 840 DALI ana | ana | 1686 lm | 1129 x 72 x 92 | 5354046605+1351100150 |
fino-HT+MP/1100 LED 1700 840 ET ana | ana | 1686 lm | 1129 x 72 x 92 | 5354044105+1351100150 |
fino-HT+MP/1100 LED 3000 840 DALI ana | ana | 3046 lm | 1129 x 72 x 92 | 5354146605+1351100150 |
fino-HT+MP/1100 LED 3000 840 ET ana | ana | 3046 lm | 1129 x 72 x 92 | 5354144105+1351100150 |
| fino-HT+MP/1400 | ||||
fino-HT+MP/1400 LED 2100 840 DALI ana | ana | 2107 lm | 1410 x 72 x 92 | 5355046605+1351400150 |
fino-HT+MP/1400 LED 2100 840 ET ana | ana | 2107 lm | 1410 x 72 x 92 | 5355044105+1351400150 |
fino-HT+MP/1400 LED 3800 840 DALI ana | ana | 3807 lm | 1410 x 72 x 92 | 5355146605+1351400150 |
fino-HT+MP/1400 LED 3800 840 ET ana | ana | 3807 lm | 1410 x 72 x 92 | 5355144105+1351400150 |
| fino-HT+MP/2200 | ||||
fino-HT+MP/2200 LED 3400 840 DALI ana | ana | 3371 lm | 2258 x 72 x 92 | 5358046605+1352200150 |
fino-HT+MP/2200 LED 3400 840 ET ana | ana | 3371 lm | 2258 x 72 x 92 | 5358044105+1352200150 |
fino-HT+MP/2200 LED 6100 840 DALI ana | ana | 6091 lm | 2258 x 72 x 92 | 5358146605+1352200150 |
fino-HT+MP/2200 LED 6100 840 ET ana | ana | 6091 lm | 2258 x 72 x 92 | 5358144105+1352200150 |
| fino-HT+MP/2800 | ||||
fino-HT+MP/2800 LED 4200 840 DALI ana | ana | 4214 lm | 2820 x 72 x 92 | 5350046605+1352800150 |
fino-HT+MP/2800 LED 4200 840 ET ana | ana | 4214 lm | 2820 x 72 x 92 | 5350044105+1352800150 |
fino-HT+MP/2800 LED 7600 840 DALI ana | ana | 7614 lm | 2820 x 72 x 92 | 5350146605+1352800150 |
fino-HT+MP/2800 LED 7600 840 ET ana | ana | 7614 lm | 2820 x 72 x 92 | 5350144105+1352800150 |
Accessories
| Type | Housing colour | Details | Article No. |
|---|---|---|---|
fino-AL 3x0,75 tp | tp | 3-pol. connection cable with ceiling canopy | 5350037105 |
fino-AL 5x0,75 tp | tp | 5-pol. connection cable with ceiling canopy | 5350057105 |

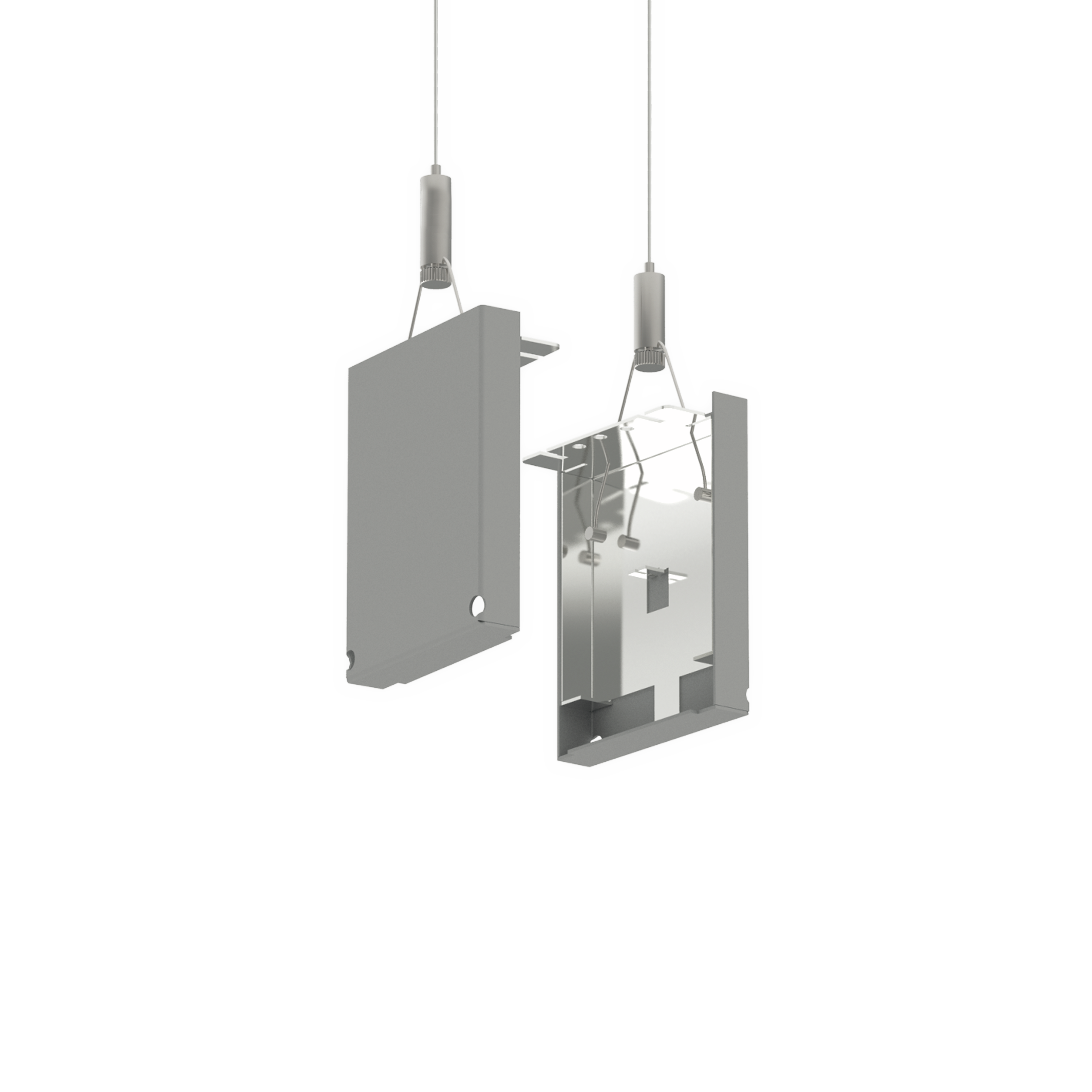

fino-HTE LED A/E (K/MP) wa | wa | Face-ends for system luminaires | 5350110105 |

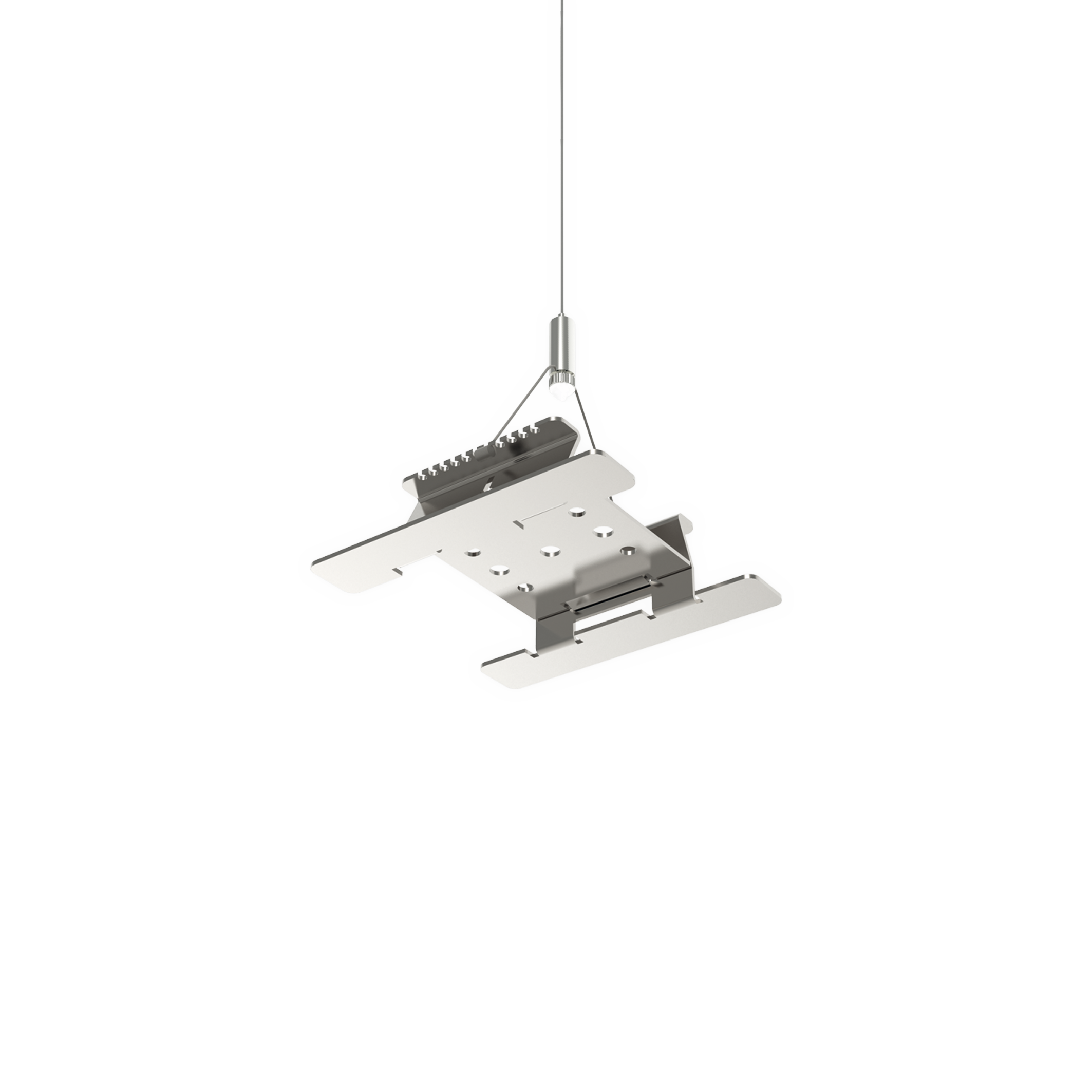

fino-SAY si | si | Wire suspension for fino-HT incl. connector | 5350000105 |
