Housing

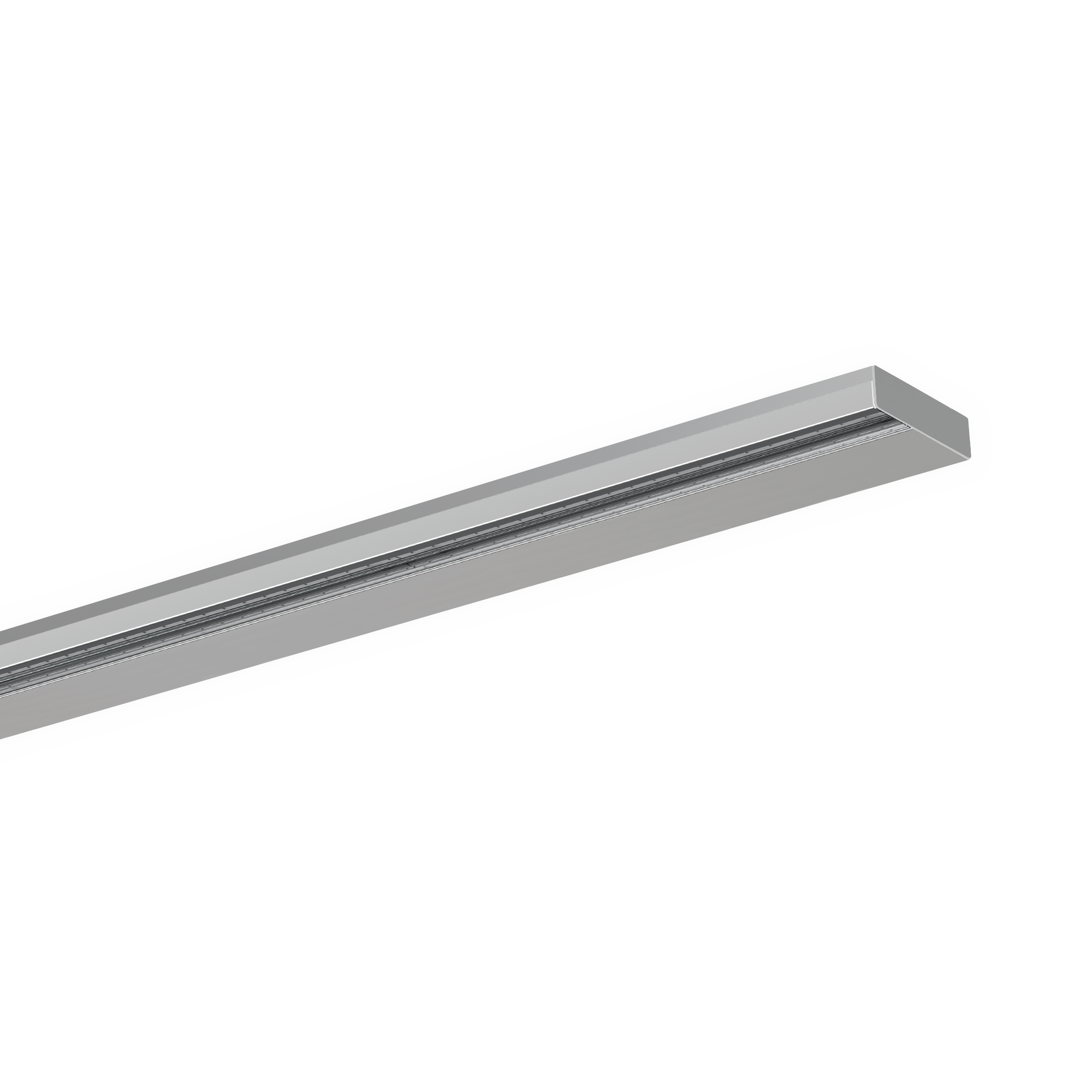

Sheet steel, powder-coated traffic white (similar to RAL 9016) or white aluminium (similar to 9006). LED unit made from extruded aluminium profile, natural anodised finish, arrangeable as optically continuous light-lines, through easy removable end-caps.
Lighting technology
Direct asymmetrical distribution. Distribution via Fresnel-lens made from PMMA. Rated life time = L80 B10 50.000h. Light colour: 4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via three-pole or for dimmable luminaires, five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm².
Accessories

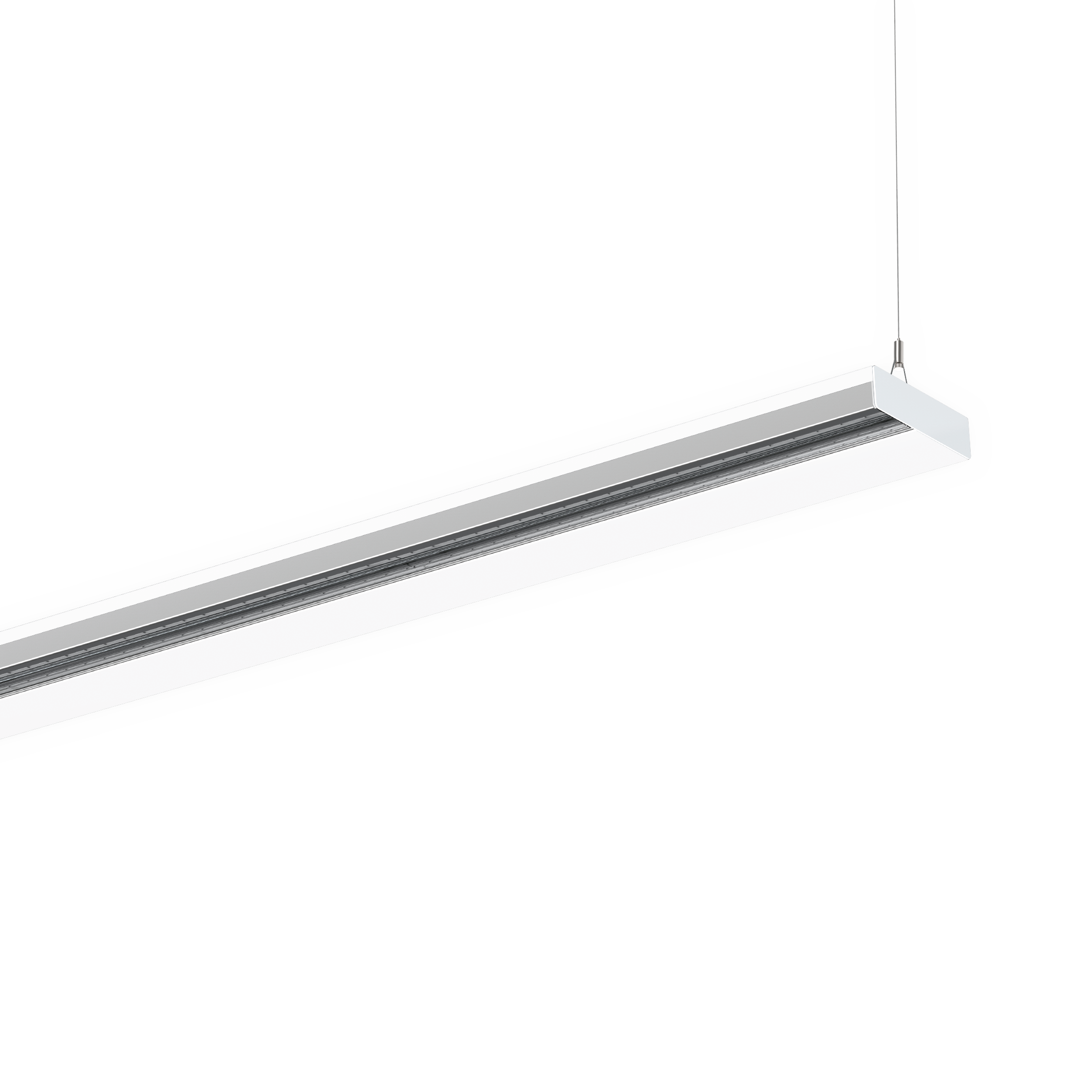

For surface mounting as continuous light-line one through-wiring micro-DV per joint is needed. For pendant mounting as single luminaire, one mounting kit micro-SAES is required. For pendant mounting as continuous light-line one mounting kit micro-SAES is needed. Additionally, for each joint one suspension micro-SAVS and one through-wiring micro-DV is necessary. Suspension length 2000mm. Accessories have to be ordered separately.
Items
| Type | Housing colour | Luminous flux | Dimensions (mm) | Article No. |
|---|---|---|---|---|
| micro-AFA/0800 | ||||
micro-AFA/0800 LED 3000 840 DALI vw | tw RAL 9016 | 3035 lm | 850 x 82 x 32 | 5313146690 |
micro-AFA/0800 LED 3000 840 DALI wa | wa RAL 9006 | 3035 lm | 850 x 82 x 32 | 5313146696 |
micro-AFA/0800 LED 3000 840 ET vw | tw RAL 9016 | 3035 lm | 850 x 82 x 32 | 5313144190 |
micro-AFA/0800 LED 3000 840 ET wa | wa RAL 9006 | 3035 lm | 850 x 82 x 32 | 5313144196 |
| micro-AFA/1100 | ||||
micro-AFA/1100 LED 4000 840 DALI vw | tw RAL 9016 | 4047 lm | 1131 x 82 x 32 | 5314146690 |
micro-AFA/1100 LED 4000 840 DALI wa | wa RAL 9006 | 4047 lm | 1131 x 82 x 32 | 5314146696 |
micro-AFA/1100 LED 4000 840 ET vw | tw RAL 9016 | 4047 lm | 1131 x 82 x 32 | 5314144190 |
micro-AFA/1100 LED 4000 840 ET wa | wa RAL 9006 | 4047 lm | 1131 x 82 x 32 | 5314144196 |
| micro-AFA/1400 | ||||
micro-AFA/1400 LED 5100 840 DALI vw | tw RAL 9016 | 5058 lm | 1412 x 82 x 32 | 5315146690 |
micro-AFA/1400 LED 5100 840 DALI wa | wa RAL 9006 | 5058 lm | 1412 x 82 x 32 | 5315146696 |
micro-AFA/1400 LED 5100 840 ET vw | tw RAL 9016 | 5058 lm | 1412 x 82 x 32 | 5315144190 |
micro-AFA/1400 LED 5100 840 ET wa | wa RAL 9006 | 5058 lm | 1412 x 82 x 32 | 5315144196 |
Accessories
| Type | Housing colour | Details | Article No. |
|---|---|---|---|
micro-DV LED | Through wiring set | 5319000100 | |

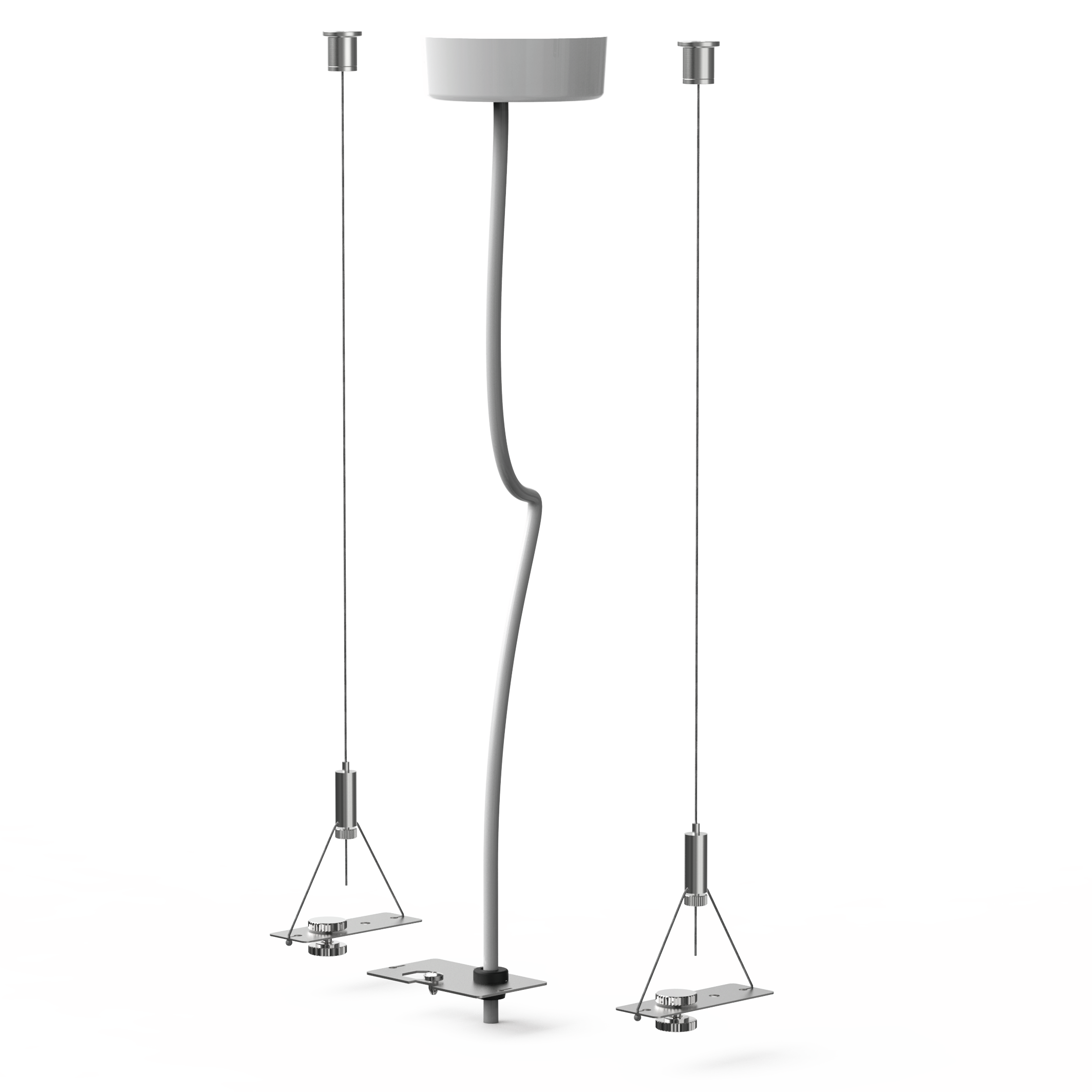

micro-SAES 2200/120 3x0,75 | Wire suspension with connection cord | 5310037105 | |
micro-SAES 2200/120 5x0,75 | Wire suspension with connection cord | 5310057105 | |

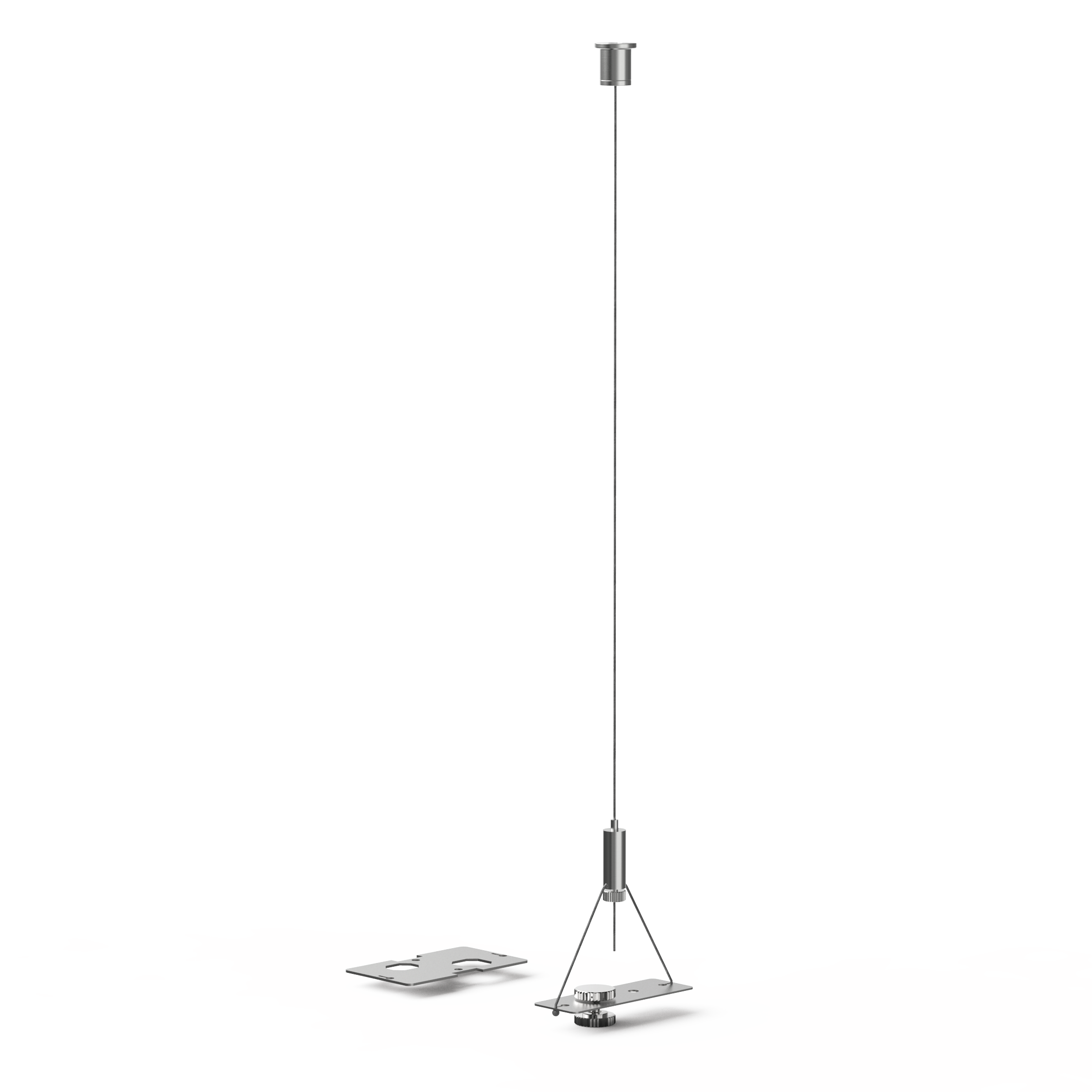

micro-SAVS 2200/120 LB | Wire suspension with mechanical junction | 5310000105 |
