Housing

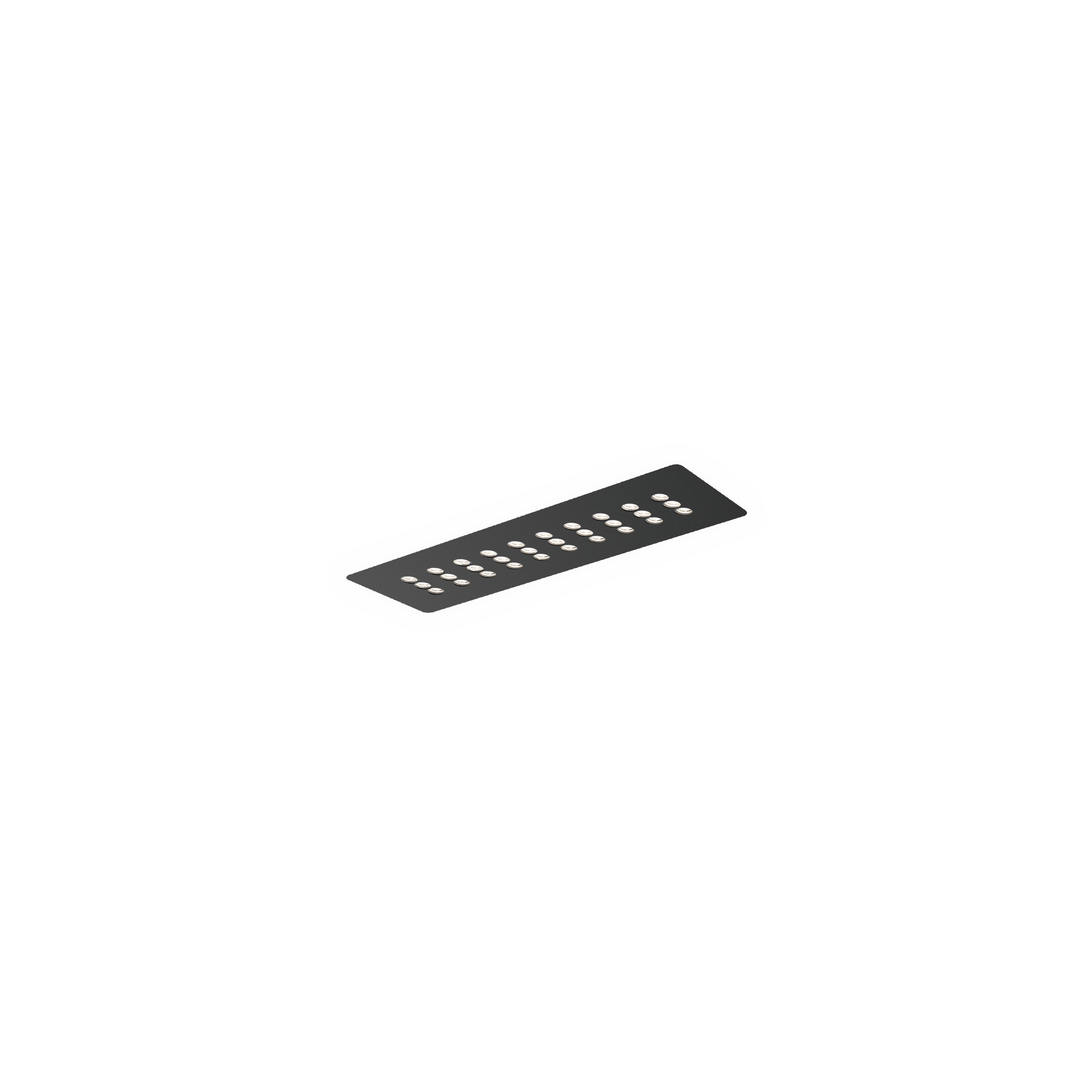

Extremely flat, frameless recessed luminaire made of sheet steel. Suitable for cut-out ceilings. Bottom of the housing one-piece with hole pattern. Traffic white (similar to RAL 9016) or black (similar to RAL 9005). Toolless mounting by means of fixing springs.
Lighting technology
Direct distribution, narrow and wide beam. Fully integrated translucent Individual Lens Optic made of acrylic. Glare rating UGR ≤ 19. Rated life time = L80 B10 50.000h. Light colour: 4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via three-pole or for dimmable luminaires, five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm².
Items
| Type | Housing colour | Luminous flux | Dimensions (mm) | Article No. |
|---|---|---|---|---|
| pilo-EOTB/400 | ||||
pilo-EOTB/400 LED 1400 840 DALI sw | bk RAL 9005 | 1378 lm | 360 x 110 x 42 | 7683046634 |
pilo-EOTB/400 LED 1400 840 DALI vw | tw RAL 9016 | 1378 lm | 360 x 110 x 42 | 7683046630 |
pilo-EOTB/400 LED 1400 840 ET sw | bk RAL 9005 | 1378 lm | 360 x 110 x 42 | 7683044134 |
pilo-EOTB/400 LED 1400 840 ET vw | tw RAL 9016 | 1378 lm | 360 x 110 x 42 | 7683044130 |
