Housing

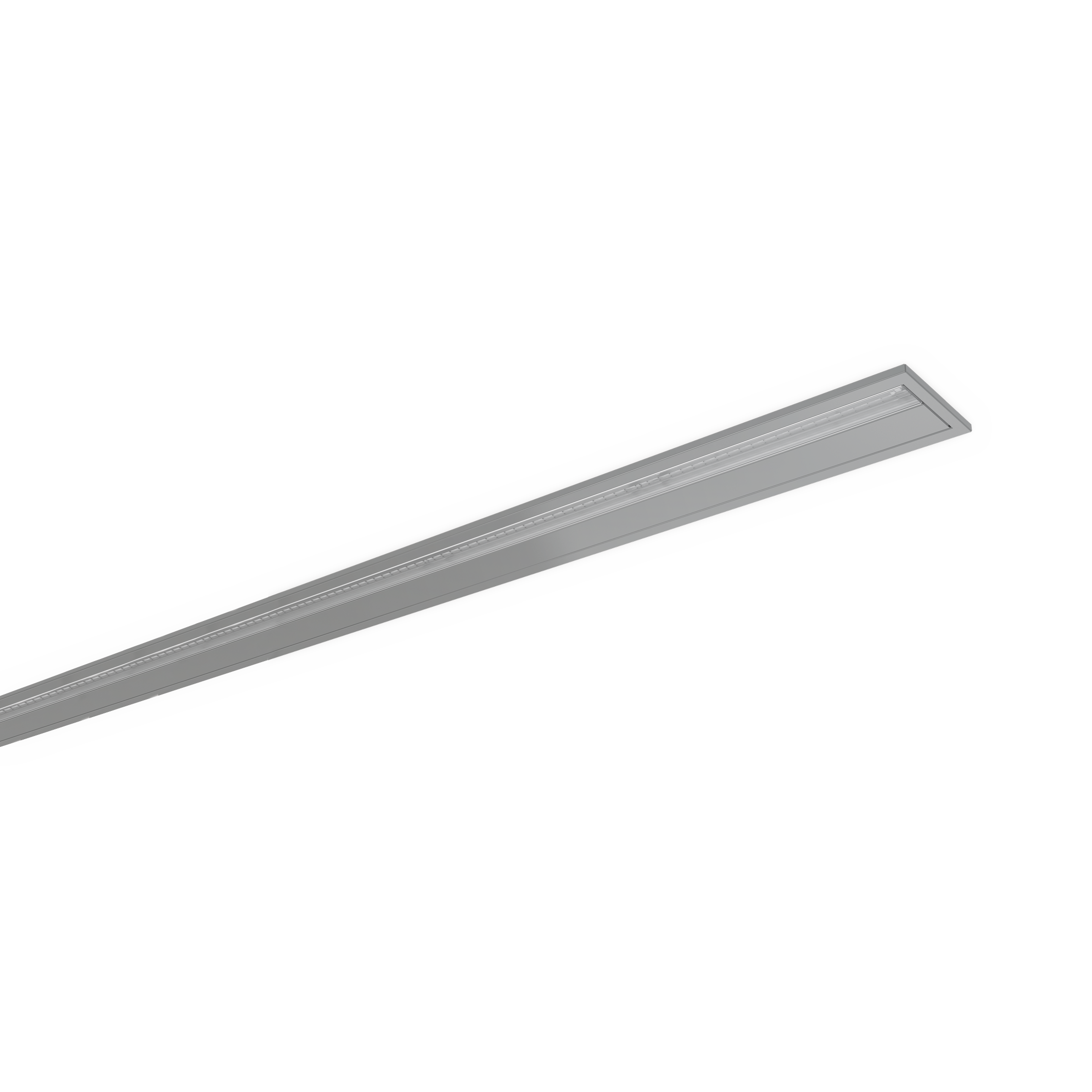

Housing of sheet steel, painted traffic white (similar to RAL 9016) or white aluminium (similar to 9006). LED unit made from aluminium profile, natural anodised finish, arrangeable as optically continuous light-lines through easy removable end-caps.
Lighting technology
Direct asymmetrical distribution. Light distribution via Fresnel-lens made from acrylic. Rated life time = L80 B10 50.000h. Light colour: 4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via three-pole or for dimmable luminaires, five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm².
Accessories
micro-DV through wiring kit for continuous light line installation must be ordered separately.
Items
| Type | Housing colour | Luminous flux | Dimensions (mm) | Article No. |
|---|---|---|---|---|
| micro-EFA/0800 | ||||
micro-EFA/0800 LED 3000 840 DALI vw | tw RAL 9016 | 3035 lm | 876 x 110 x 57 | 7313146690 |
micro-EFA/0800 LED 3000 840 DALI wa | wa RAL 9006 | 3035 lm | 876 x 110 x 57 | 7313146696 |
micro-EFA/0800 LED 3000 840 ET vw | tw RAL 9016 | 3035 lm | 876 x 110 x 57 | 7313144190 |
micro-EFA/0800 LED 3000 840 ET wa | wa RAL 9006 | 3035 lm | 876 x 110 x 57 | 7313144196 |
| micro-EFA/1100 | ||||
micro-EFA/1100 LED 4000 840 DALI vw | tw RAL 9016 | 4047 lm | 1157 x 110 x 57 | 7314146690 |
micro-EFA/1100 LED 4000 840 DALI wa | wa RAL 9006 | 4047 lm | 1157 x 110 x 57 | 7314146696 |
micro-EFA/1100 LED 4000 840 ET vw | tw RAL 9016 | 4047 lm | 1157 x 110 x 57 | 7314144190 |
micro-EFA/1100 LED 4000 840 ET wa | wa RAL 9006 | 4047 lm | 1157 x 110 x 57 | 7314144196 |
| micro-EFA/1400 | ||||
micro-EFA/1400 LED 5100 840 DALI vw | tw RAL 9016 | 5058 lm | 1438 x 110 x 57 | 7315146690 |
micro-EFA/1400 LED 5100 840 DALI wa | wa RAL 9006 | 5058 lm | 1438 x 110 x 57 | 7315146696 |
micro-EFA/1400 LED 5100 840 ET vw | tw RAL 9016 | 5058 lm | 1438 x 110 x 57 | 7315144190 |
micro-EFA/1400 LED 5100 840 ET wa | wa RAL 9006 | 5058 lm | 1438 x 110 x 57 | 7315144196 |
Accessories
| Type | Housing colour | Details | Article No. |
|---|---|---|---|
micro-DV LED | Through wiring set | 5319000100 |
