Housing
Aluminium profile, natural anodised. Surrounding shadow joint between housing and flat inserted film frame. Minimal dirt ingress via sealing lip between frame and housing. For ceiling cut-outs. Epic Q 1200 also suitable for ceilings with visible T-rails.
Lighting technology
Direct distribution. Aluminium profile set flush in the housing with translucent film for a homogenous appearance. Light colour: 4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via three-pole or for dimmable luminaires, five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm². Connection cable pre-mounted.
Accessories
Mounting on site or via wire suspension kit, to be ordered separately. Extraction tool for removing the film frame, to be ordered separately.
Items
| Type | Housing colour | Luminous flux | Dimensions (mm) | Article No. |
|---|---|---|---|---|
| epic-Q-EF/600-88 | ||||
epic Q600-88-EF LED 4800 840 DALI | ana | 4759 lm | 630 x 630 x 96 | 6240606164 |
epic Q600-88-EF LED 4800 840 ET | ana | 4759 lm | 630 x 630 x 96 | 6240604164 |
| epic-Q-EF/900-88 | ||||
epic Q900-88-EF LED 10500 840 DALI | ana | 10500 lm | 930 x 930 x 96 | 6240906164 |
epic Q900-88-EF LED 10500 840 ET | ana | 10500 lm | 930 x 930 x 96 | 6240904164 |
| epic-Q-EF/1200-88 | ||||
epic Q1200-88-EF LED 18400 840 DALI | ana | 18379 lm | 1238 x 1238 x 103 | 6241206164 |
epic Q1200-88-EF LED 18400 840 ET | ana | 18379 lm | 1238 x 1238 x 103 | 6241204164 |
| epic-Q-EF/1500-88 | ||||
epic Q1500-88-EF LED 29500 840 DALI | ana | 29525 lm | 1530 x 1530 x 103 | 6241506164 |
epic Q1500-88-EF LED 29500 840 ET | ana | 29525 lm | 1530 x 1530 x 103 | 6241504164 |
Accessories
| Type | Housing colour | Details | Article No. |
|---|---|---|---|

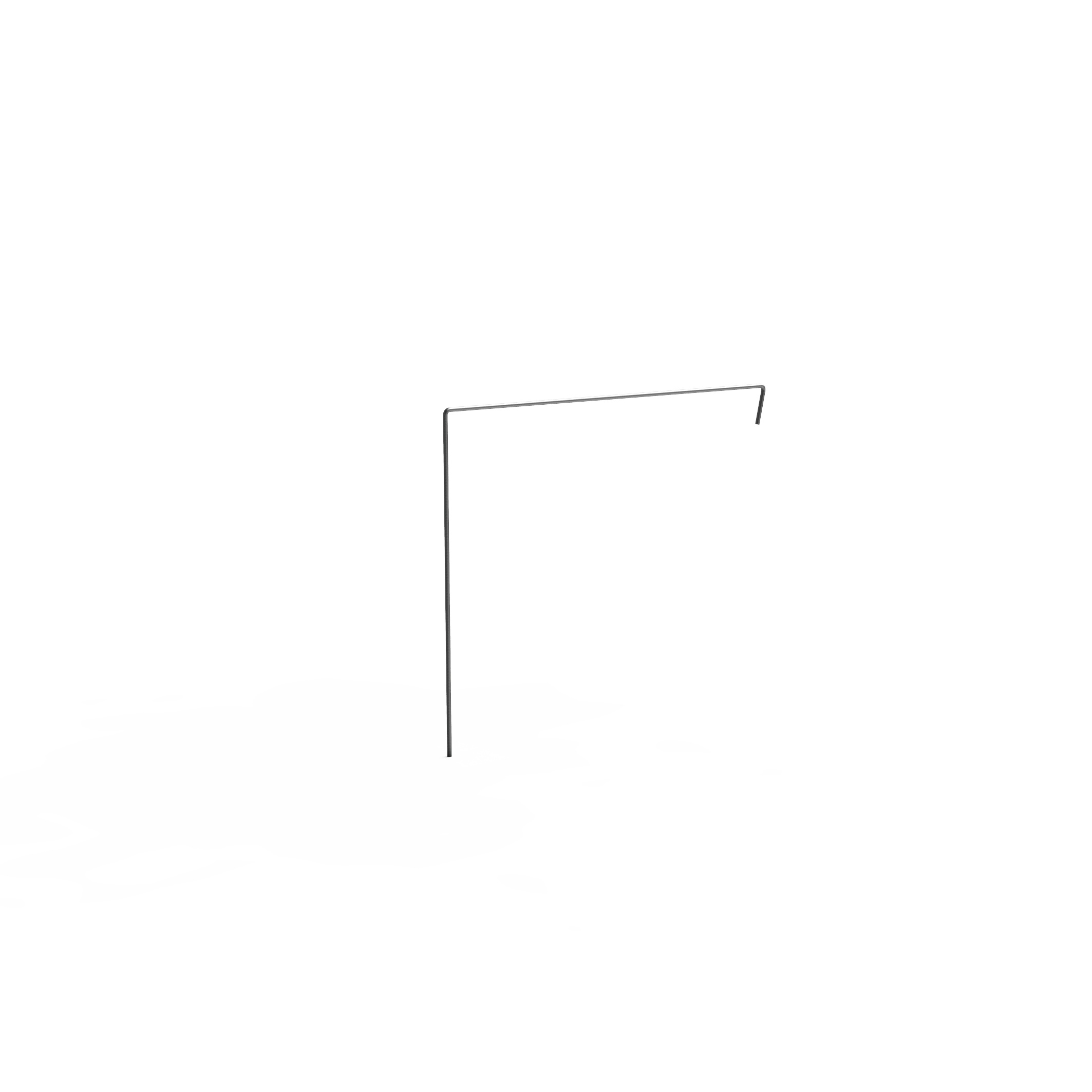

epic - extraction tool | Film frame extractor tool for epic R and epic Q | 6300000110 | |
epic-Q/R-E | Wire suspension kit for epic R-EF and epic Q-EF to bare ceiling | 6300000100 |
