Housing

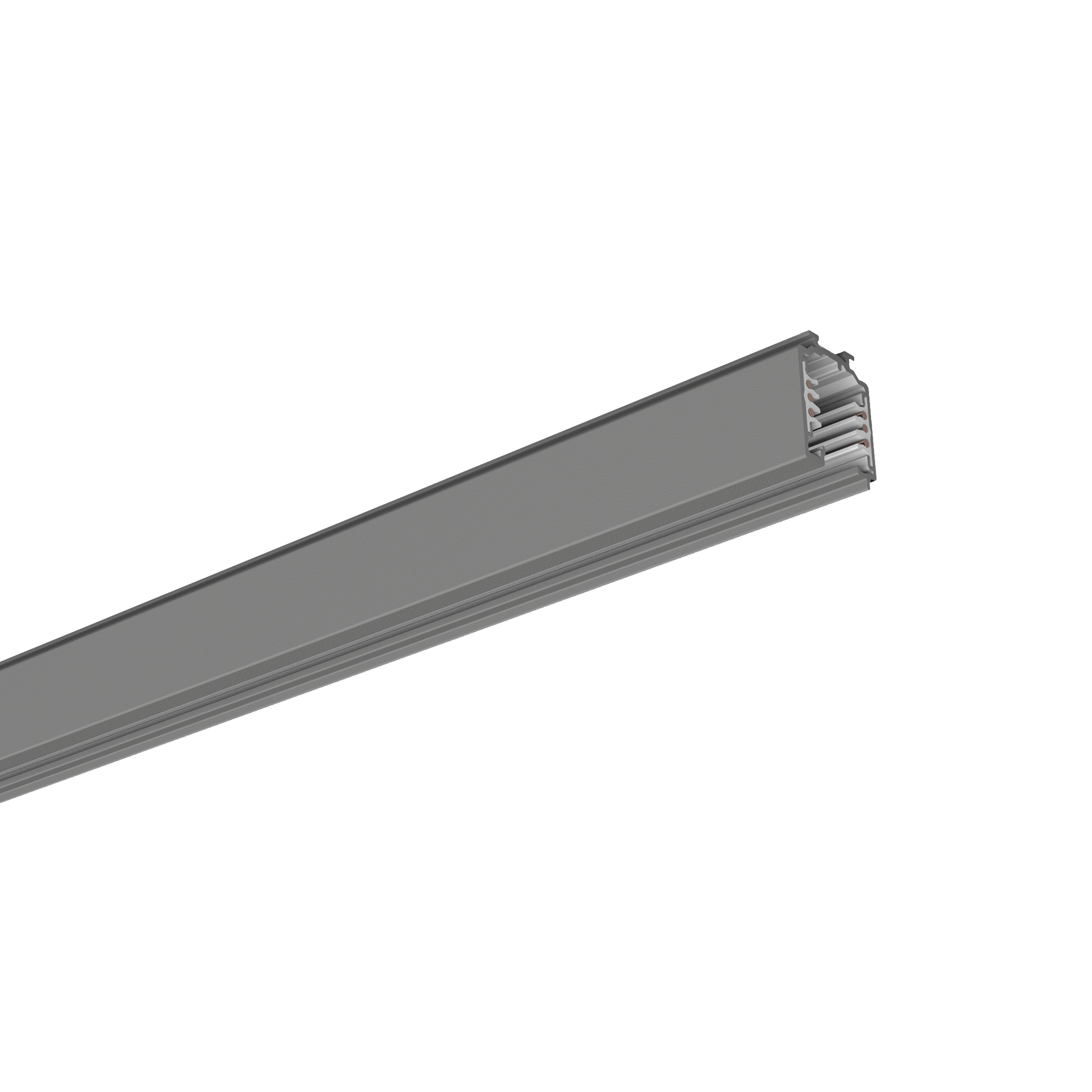

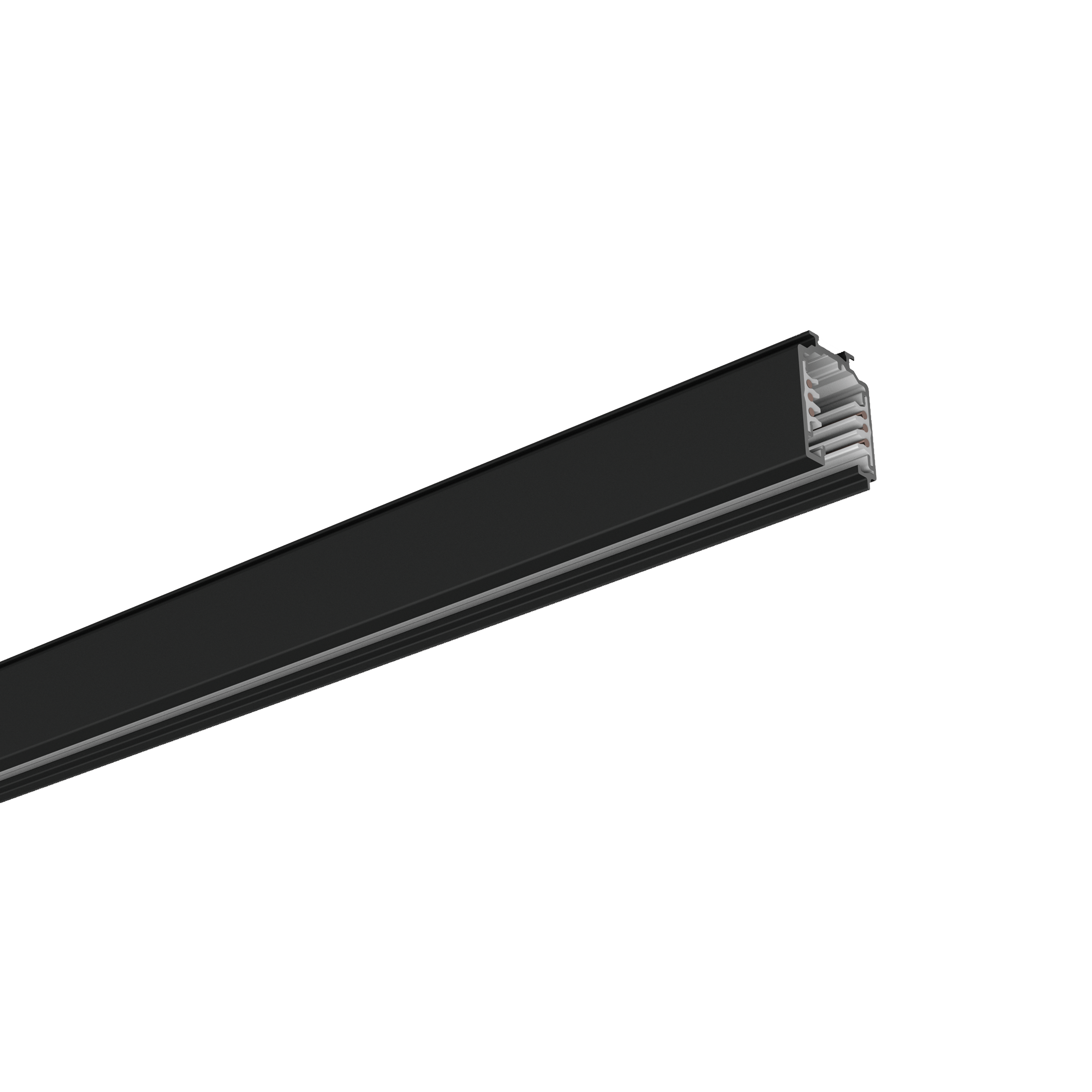

Extruded aluminium profile, rail can be shortened to any length.
Electrical engineering
Three-phase-track, seven pole. 3x16A/N/PE + 2x DALI
Miscellaneous

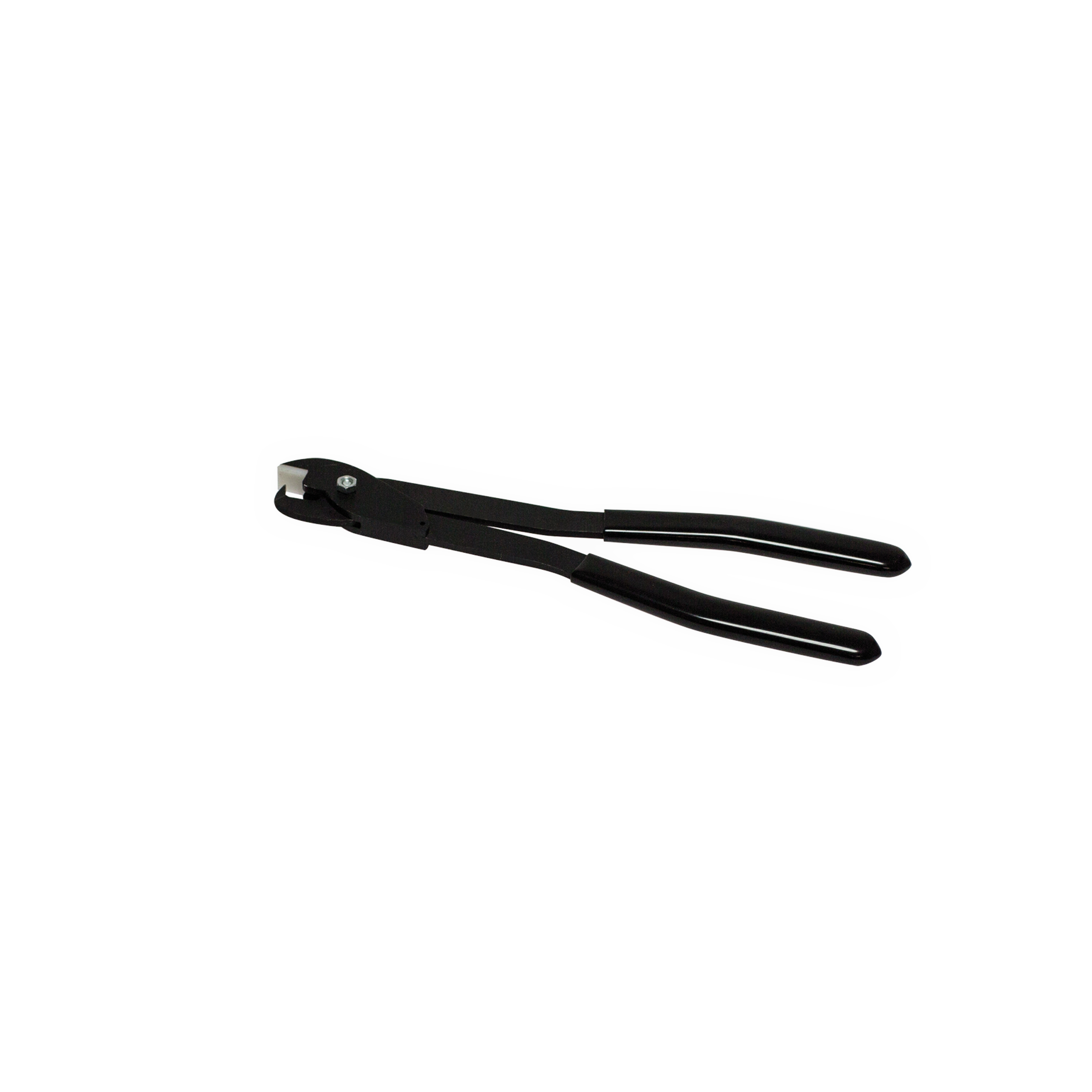

Suitable for luminaires with a 3-ph. track adapter (ET) from Lichtwerk, Global Trac, Eutrac, Iguzzini, Ivela, Powergear, Reggiani, Targetti, Zumtobel and 5-ph. track adapter (DALI) from Lichtwerk, Global Trac. If the track is cut to length on site, the conductor tracks must be shortened using the DPSN LBW tool.
Items
| Type | Housing colour | Details | Article No. |
|---|---|---|---|
| DPSNA-1000 | |||
DPSNA-1000 bk | bk | 3244110104 | |
DPSNA-1000 sg | sg | 3244110105 | |
DPSNA-1000 ws | ws | 3244110100 | |
| DPSNA-2000 | |||
DPSNA-2000 bk | bk | 3244210104 | |
DPSNA-2000 sg | sg | 3244210105 | |
DPSNA-2000 ws | ws | 3244210100 | |
| DPSNA-3000 | |||
DPSNA-3000 bk | bk | 3244310104 | |
DPSNA-3000 sg | sg | 3244310105 | |
DPSNA-3000 ws | ws | 3244310100 | |
| DPSNA-4000 | |||
DPSNA-4000 bk | bk | 3244410104 | |
DPSNA-4000 sg | sg | 3244410105 | |
DPSNA-4000 ws | ws | 3244410100 | |
