Housing
Sheet steel
Lighting technology
Diffuser of mouth-blown, triple-layer frosted opal glass. Also available as plastic PE version upon request. Rated life time = L80 B10 50.000h. Light colour: 4000K. Optional: 3000K.
Suspension

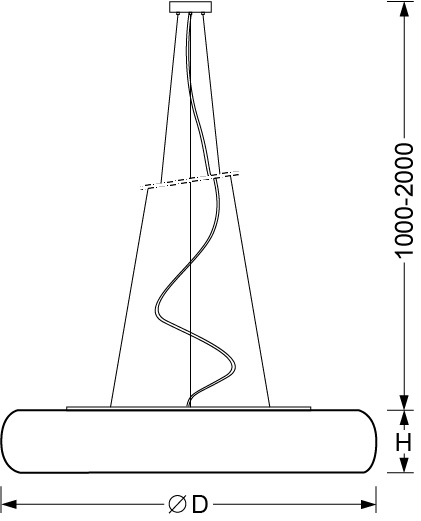

Ceiling canopy structure-coated metallic grey. Steel wire suspension with rapid coupling, free height adjustment from 1000 to 2000mm.
Miscellaneous
Electrical connection via three-pole or for dimmable luminaires, five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm².
Items
| Type | Housing colour | Luminous flux | Dimensions (mm) | Article No. |
|---|---|---|---|---|
| corona-H/415 | ||||
corona-H/415 LED 3600 940 DALI wa | wa RAL 9006 | 3589 lm | 415 x 90 | 5584946600 |
corona-H/415 LED 3600 940 ET wa | wa RAL 9006 | 3589 lm | 415 x 90 | 5584944100 |
| corona-H/500 | ||||
corona-H/500 LED 4700 940 DALI wa | wa RAL 9006 | 4684 lm | 500 x 100 | 5585946600 |
corona-H/500 LED 4700 940 ET wa | wa RAL 9006 | 4684 lm | 500 x 100 | 5585944100 |
| corona-H/600 | ||||
corona-H/600 LED 5400 940 DALI wa | wa RAL 9006 | 5369 lm | 600 x 110 | 5586946600 |
corona-H/600 LED 5400 940 ET wa | wa RAL 9006 | 5369 lm | 600 x 110 | 5586944100 |
