serio-H lighting system
serio-HITES LED

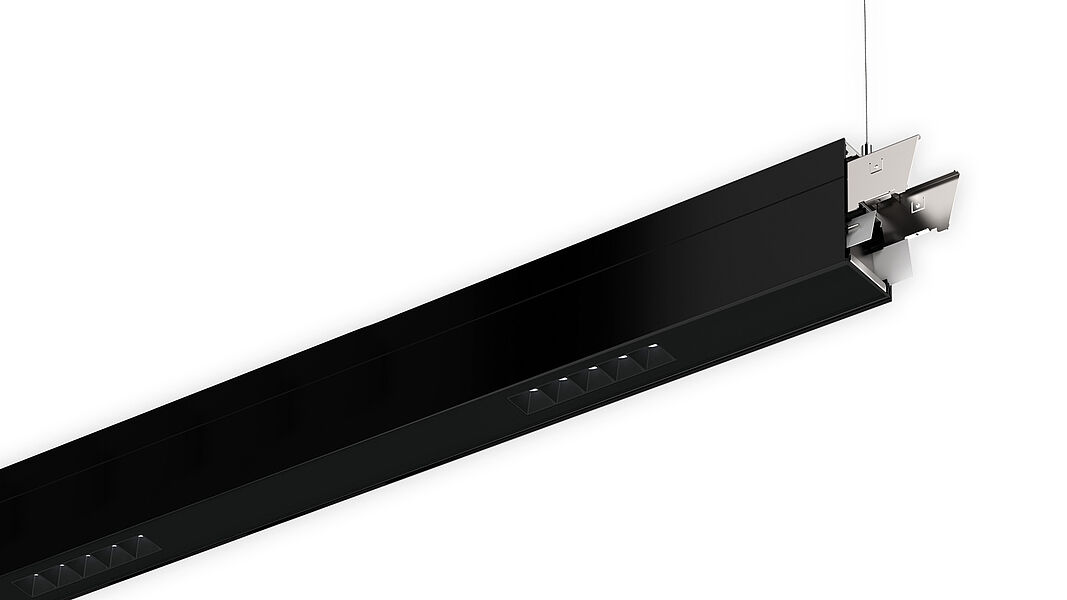

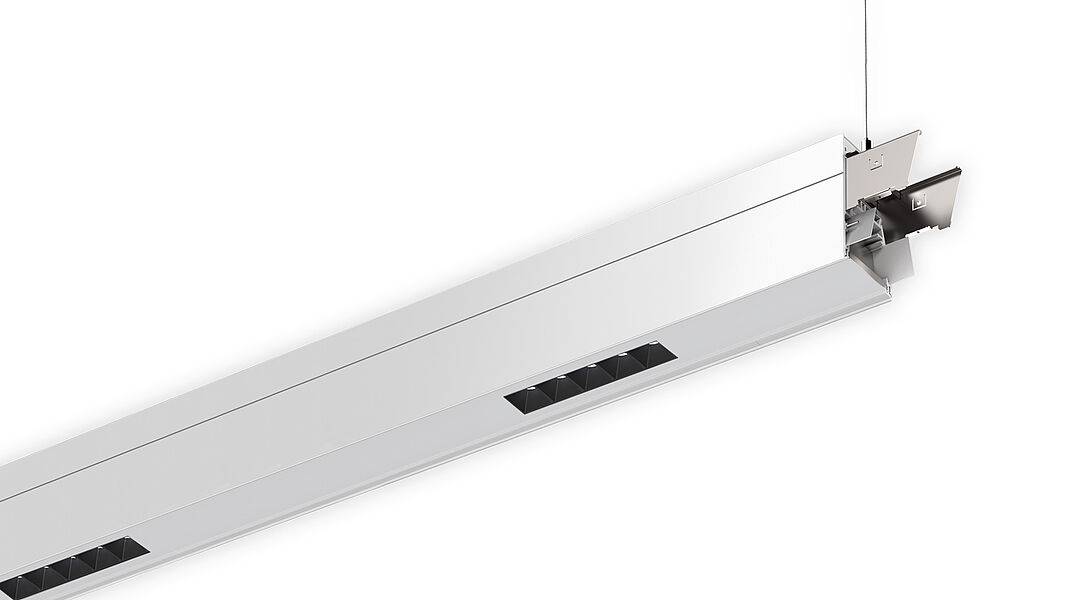

Housing
Aluminium profile incl. LED-unit for indirect share, naturally anodised, traffic white (similar to RAL 9016) or black (similar to RAL 9005). Integrated built-in spotlights in the bottom of the housing.
Lighting technology
Direct/indirect distribution, DALI Variant separately dimmable.
Constant indirect share via white-opal, satin-finished acrylic diffusor throughout all system components.
Direct share via integrated built-in spotlights; beam angle 25°.
Rated life time = L80 B10 50.000h.
Light colour:4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm². Through wiring plug-in system 10A.
Read more
Suspension
For system profile serio-HITES LB one wire suspension is in scope of delivery.
Accessories
For open lighting system designs the face-end set serio-HITE A/E LB, for closed lighting system designs the connection cable serio-AL must be ordered separately.
| Type | Output | Colour | Psys (W) | Dimensions (LxWxH) | Item number | Downloads |
|---|---|---|---|---|---|---|
| System luminaires 1100 | ||||||
| serio-HITES/1100 LED 2600 840 ET LB | low | ana/bl | 24 | 1125x61x106 | 5434044175 5434044175 | Download |
| serio-HITES/1100 LED 3600 840 ET LB | high | ana/bl | 34 | 1125x61x106 | 5434144175 5434144175 | Download |
| serio-HITES/1100 LED 3600 840 DALI LB | high | ana/bl | 34 | 1125x61x106 | 5434146675 5434146675 | Download |
| System luminaires 1700 | ||||||
| serio-HITES/1700 LED 3700 840 ET LB | low | ana/bl | 36 | 1685x61x106 | 5436044175 5436044175 | Download |
| serio-HITES/1700 LED 5300 840 ET LB | high | ana/bl | 50 | 1685x61x106 | 5436144175 5436144175 | Download |
| serio-HITES/1700 LED 5300 840 DALI LB | high | ana/bl | 50 | 1685x61x106 | 5436146675 5436146675 | Download |
Download
Download
Download
Download
Download
Accessories
| Type | Colour | Details | Dimensions (LxWxH) | Item number | Downloads |
|---|---|---|---|---|---|
| serio-HITE LED A/E Set 3x0,75 | wa | 2x face ends, 1x 3 wire connection cord incl. canopy, 1x suspension | 2000 | 5430137105 5430137105 | Download |
| serio-HITE LED A/E Set 5x0,75 | wa | 2x face ends, 1x 5 wire connection cord incl. canopy, 1x suspension | 2000 | 5430157105 5430157105 | Download |
| serio-AL 3x0,75 | tz | 3 wire connection cord incl. canopy | 2000 | 5430037105 5430037105 | Download |
| serio-AL 5x0,75 | tz | 5 wire connection cord incl. canopy | 2000 | 5430057105 5430057105 | Download |
