puck surface mounted luminaires

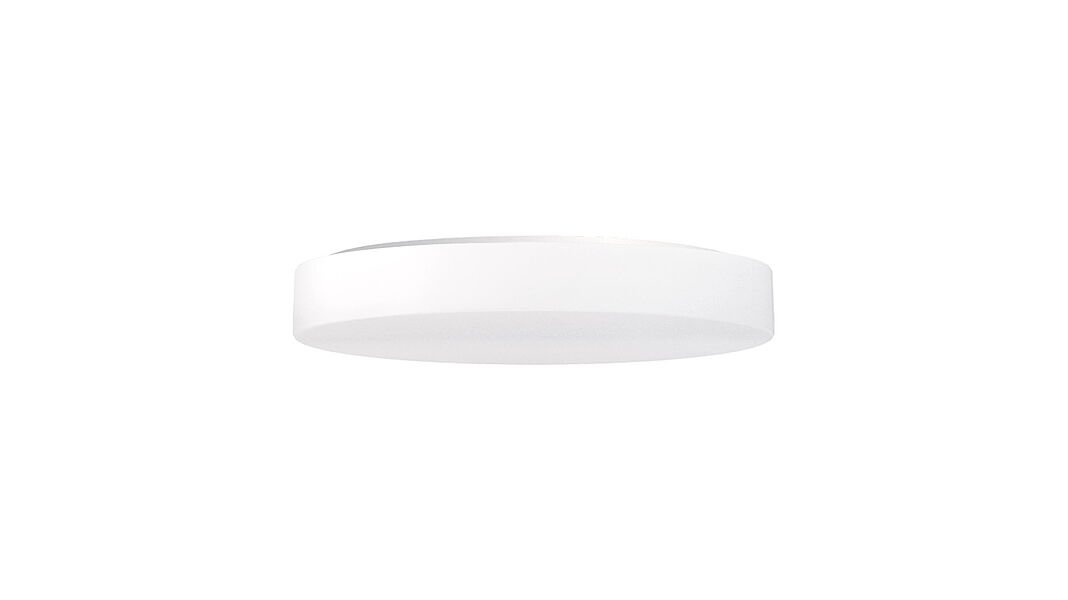

puck-A LED



Surface mounted luminaire

of mouth-blown, triple-layer frosted opal glass.

Rated life time = L80 B10 50.000h.

Light colour: 4000K. Optional: 3000K.

Suitable for ceiling- or for wall-mounting.



Miscellaneous

Electrical connection via three-pole or for dimmable luminaires, five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and

flexible cables up to 2,5mm².



Download
Download
Download
Filter
0
Articles
| Reset all
Size (mm)
415 x 100
500 x 110
600 x 120
Housing colour
traffic white RAL 9016
Dimmable
no
yes
Lightcolour
940
Type Colour Luminous flux (lm) Dimensions (mm) (DxH) Item number null Downloads
puck-A/415 LED 3600 940 ET vw tw RAL 9016 3631 415 x 100 5524944100 543.00 € Download
puck-A/415 LED 3600 940 DALI vw tw RAL 9016 3631 415 x 100 5524946600 643.00 € Download
puck-A/500 LED 4700 940 ET vw tw RAL 9016 4749 500 x 110 5525944100 853.00 € Download
puck-A/500 LED 4700 940 DALI vw tw RAL 9016 4749 500 x 110 5525946600 954.00 € Download
puck-A/600 LED 5400 940 ET vw tw RAL 9016 5435 600 x 120 5526944100 1127.00 € Download
puck-A/600 LED 5400 940 DALI vw tw RAL 9016 5435 600 x 120 5526946600 1229.00 € Download
