light furniture
light bench
Housing

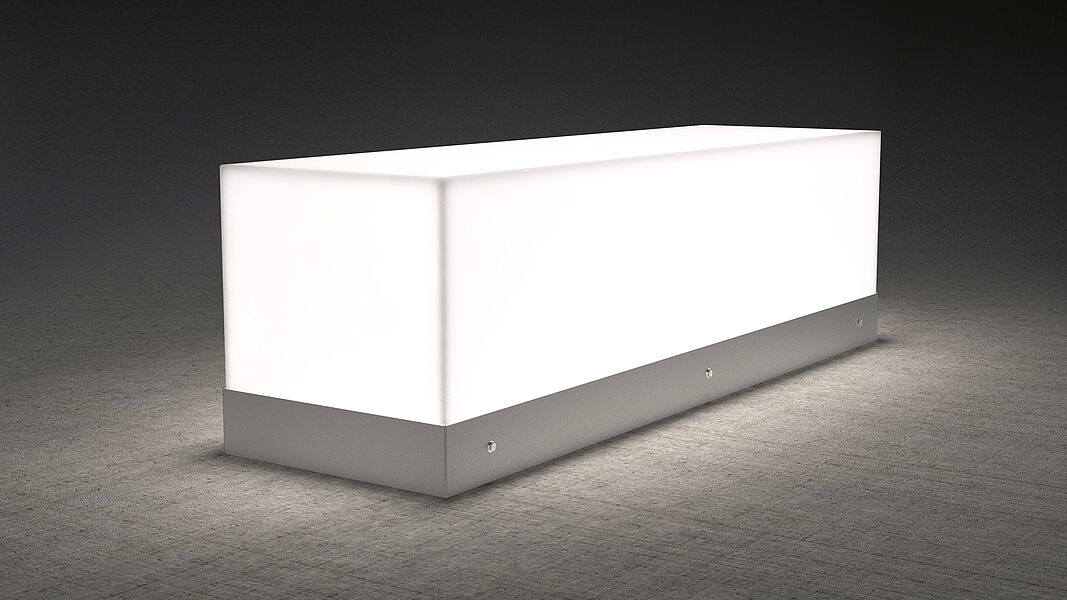

Base part with clamping mechanism made of galvanised or stainless steel. Inner mounting plate for taking up the electrical components made of stainless steel. Cover made of massive frosted acrylic glass with welded edges. Suitable for use in public space.
Lighting technology

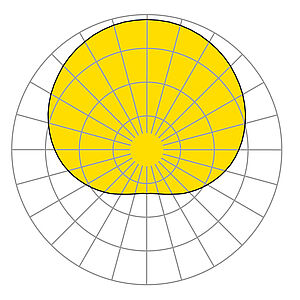

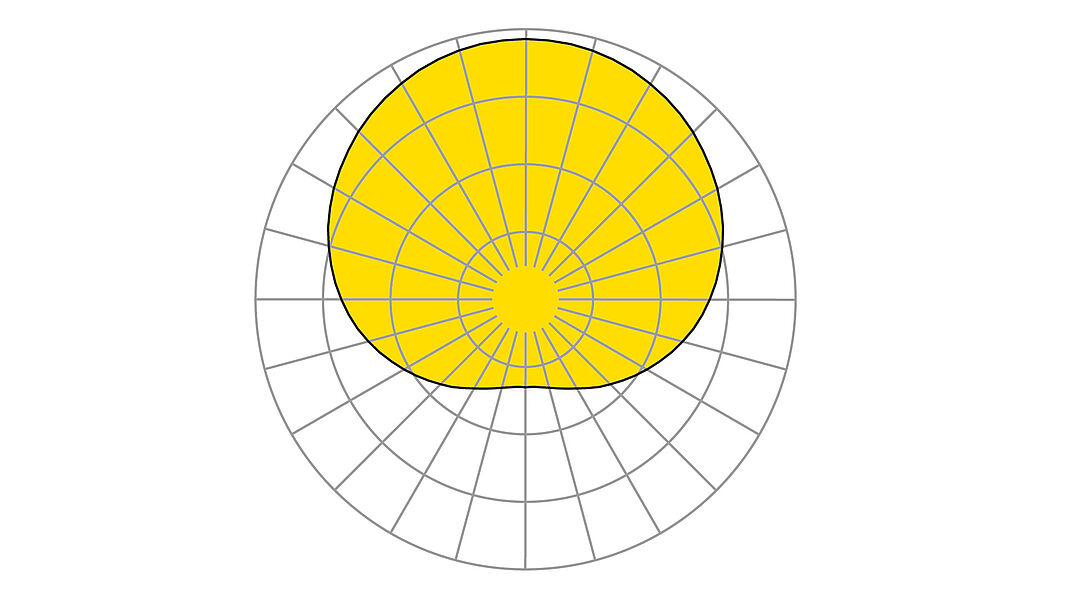

Modular LED with wide distributing lens optics for homogeneous appearance. Rated life time = L70 B50 50.000h.
Lighting technology RGBW
Modular RGBW LED with wide distributing lens optics for homogeneous appearance. Electronic driver with 4 separate DALI channels. Rated life time = L70 B50 50.000h.
Miscellaneous
Electrical connection via 5-pole plugin connection terminal; with integrated earth conductor connection and unlocking button, suitable for rigid and flexible cables up to 2.5mm². Protected by internal weatherproof junction box.

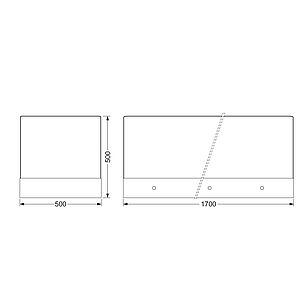

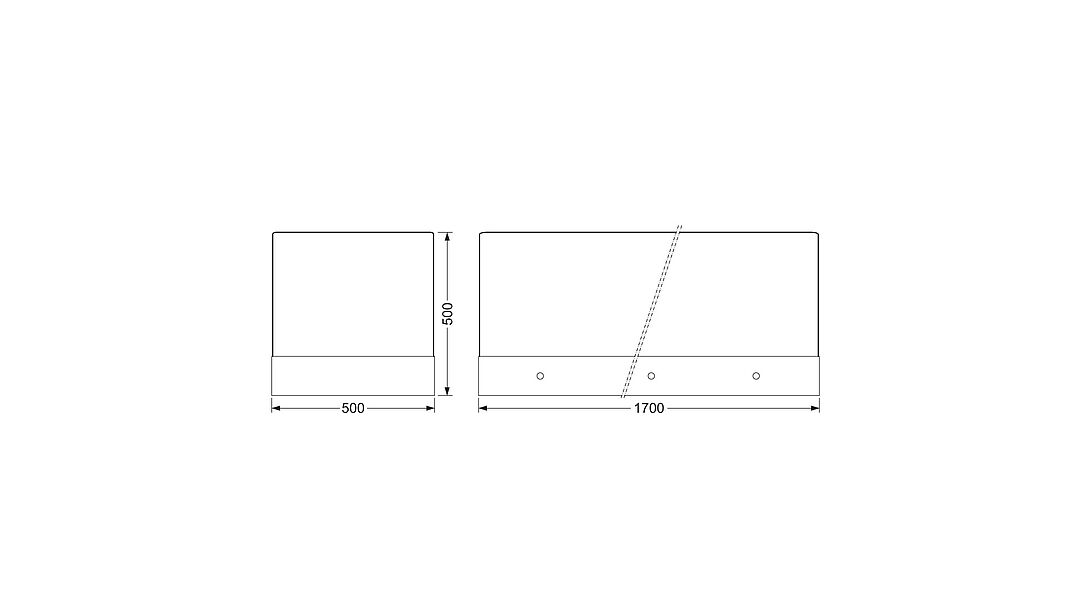

| Type | Colour | Luminous flux (lm) | Dimensions (mm) (LxWxH) | Item number | Downloads | |
|---|---|---|---|---|---|---|
| light bench | ||||||
| light bench LED 2100 840 ET IP65 vz | 2055 | 1700 x 500 x 500 | 8480014100 | 8296.00 € | Download | |
| light bench LED 2100 840 ET IP65 V2A | 2055 | 1700 x 500 x 500 | 8480014120 | 8843.00 € | Download | |
| light bench-RGBW | ||||||
| light bench LED RGBW DALI IP65 vz | 1700 x 500 x 500 | 8480026600 | 8714.00 € | Download | ||
| light bench LED RGBW DALI IP65 V2A | 1700 x 500 x 500 | 8480026620 | 9262.00 € | Download | ||
